Model Name

Indoor

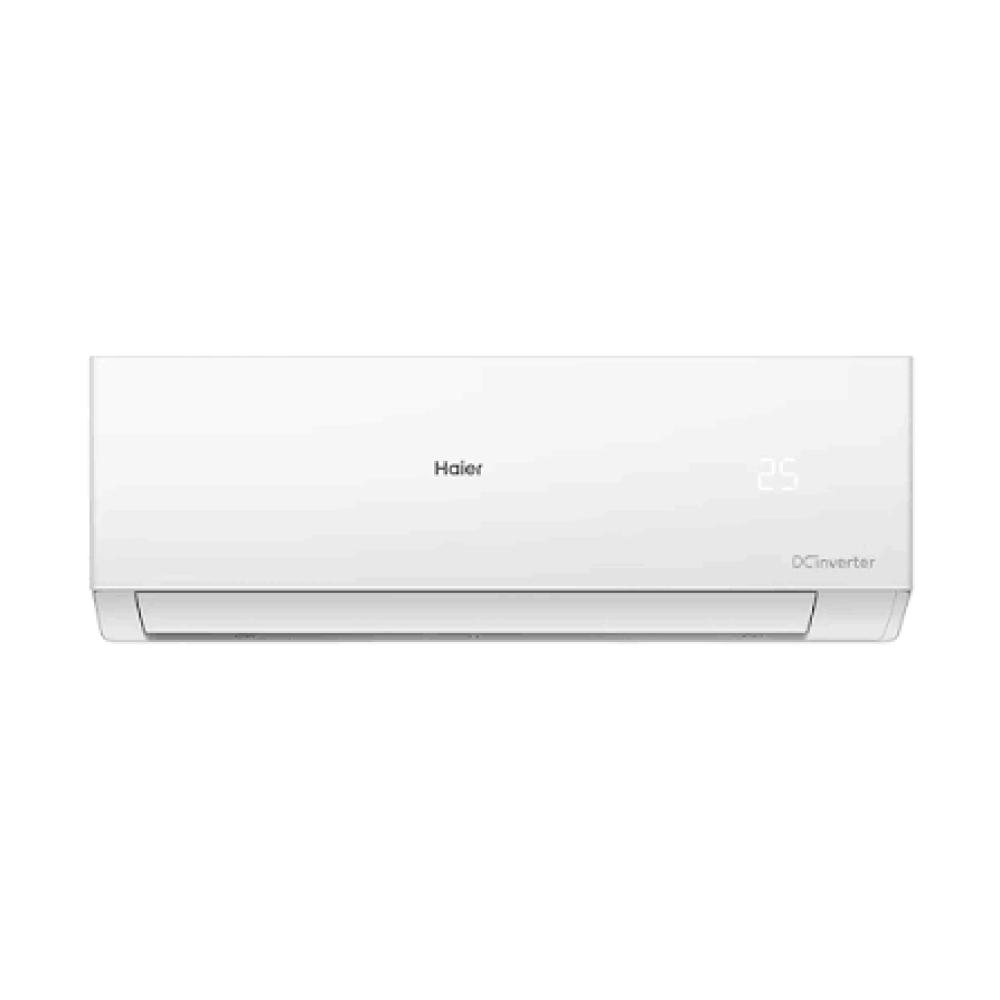

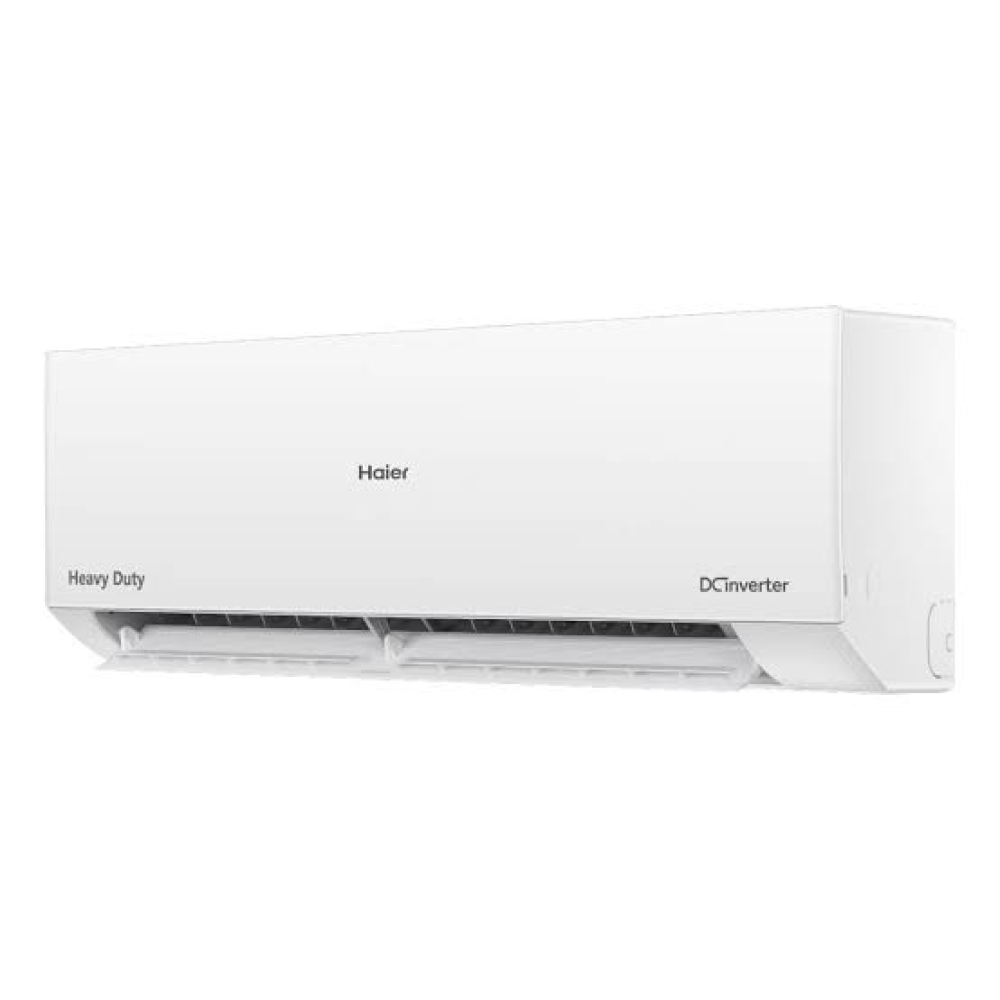

HSU-13CleanCool(INV)(Pro)(X6)

Outdoor

HSU-13K(INV)(Pro)(X6)

Category

Inverter

Series

Inverter

Capacity and Parameters

Type

Inverter

Ton Range (TR)

1.1 Ton

Capacity(BTU)

13000

Rated Cooling Capacity (W)

3810

Rated Heating Capacity (W)

N/A

Rated Power Input Cooling (W)

1310

Rated Power Input Heating (W)

N/A

Max. Power input Cooling (W)

1560

Max. Power input Heating (W)

N/A

Energy Effeciency Ratio (EER)

2.93

Seasonal Energy Efficiency Ratio (SEER):

3.80

Coefficient of Performance (COP)

N/A

Rated Running Current (A) Cooling

6.0

Rated Running Current (A) Heating

N/A

Max.Running Current (A) Cooling

7.2

Max.Running Current (A) Heating

N/A

Power supply (Ph,V,Hz)

1/230/50HZ

Air Circulation (m3/h)

650

Moisture Removal (10-3m3/h)

N/A

Refrigerant Type

R32

Refrigerant Standard (Kg)

0.700

Refrigerant Pipe Liquid Side Diameter (mm)

6

Refrigerant Pipe Gas Side Diameter (mm)

9

Compressor Type

Rotary

Evaporator/Condenser

100% 7mm Grooved Copper

Heat Exchangers

Golden Fin

Indoor

Indoor Net dimension (mm) W/D/H

805*200*292

Indoor Package dimension (mm) W/D/H

876*365*272

Indoor Net weight (kg)

9.5

Indoor Gross weight (kg)

11.5

Indoor Sound power level [dB(A)] Hi/Mid/Lo

41/38/35

Outdoor

Outdoor Net dimension (mm) W/D/H

800*280*553

Outdoor Package dimension (mm) W/D/H

908*405*627

Outdoor Net weight (kg)

24.5

Outdoor Gross weight (kg)

29.0

Outdoor Sound power level [dB(A)] Hi/Mid/Lo/So

51

Air Flow Direction

Up & Down

Auto

Left & Right

Auto

User Functions

Self Clean:

Yes

Energy Savings:

Yes (Up to 65%)

ECO Mode:

Yes

UVC Pro Technology:

No

Wifi:

No

Dry Mode:

Yes

Turbo Function:

Yes

Auto Restart Function:

Yes

Sleep Mode:

Yes

Low Noise:

Yes

Timer:

Yes

Quick & Easy Installation:

Yes

Child Lock:

Yes
