Type

Direct Cool

Capacity :

Gross Volume

252 Ltr.

Net Volume

238 Ltr.

Net Weight

59 ± 2 Kg

Gross Weight

66 ± 2 Kg

Performance :

Climatic Type (SN, N, ST, T)

N~ST

Rated Voltage/ Hz

220 ~ 240/ 50

Compressor Input Power (Watt)

V 06.01-124
V 07.01-109
V 07.02-109
V 07.03-109
V 08.01-127

Compressor Type

RSCR

Energy Rating

N/A

Cooling Effect

Freezer Cabinet Less than -18℃
Refrigerator Cabinet 0℃ to +5℃

General Features :

Temperature Control (Electronic/ Mechanical)

Electronic

Defrosting (Automatic/ Manual):

Manual

Handle (Recessed/ Grip)

Recessed/Grip

Lock

Yes

Refrigerant

R600a

Thermostat

RoHS Certified

Capillary

Copper

Polyurethane foam blowing agent

Cyclopentene [Eco-friendly (100% CFC &
HCFC Free) Green Technology]

Recommended voltage stabilizer capacity

V 06.01-Low Voltage(130~260V)
For V 06.01- Wide Voltage Range (130Vac - 260Vac). Voltage stabilizer is not required.
In case of voltages beyond this range, 1000VA is recommended. V 07.01,V 07.02,V 07.03-Low Voltage(140~260V)
For V07.01, V 07.02,V 07.03 - Wide Voltage Range (140Vac - 260Vac).
Voltage stabilizer is not required. In case of voltages beyond this range, 1000VA is recommended
V 08.01-Low Voltage(150~260V)
For V 08.01 - Wide Voltage Range (150Vac - 260Vac).
Voltage stabilizer is not required.
In case of voltages beyond this range, 1000VA is recommended.

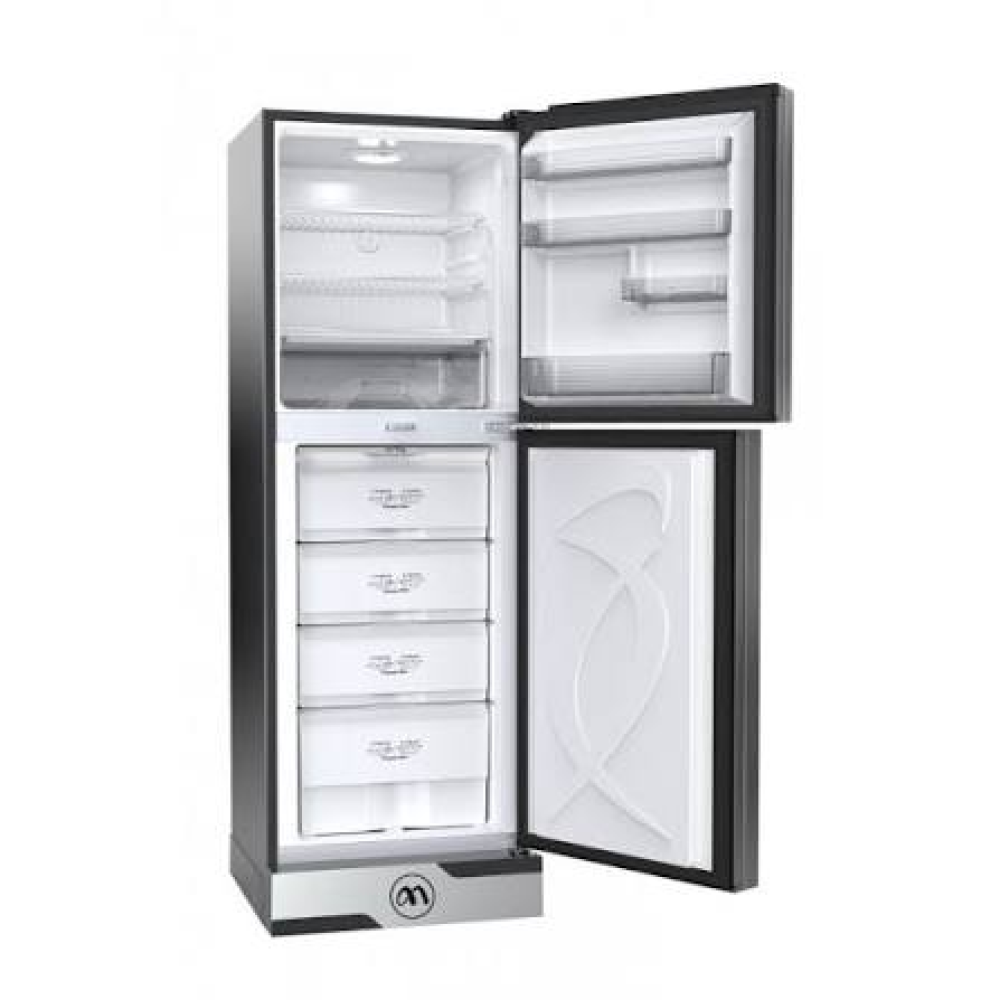

Refrigerator Compartment :

Shelf (Material/No.)

Wire/2

Door Basket

GPPS/4

Interior Lamp

Yes

Vegetable Crisper

Yes

Vegetable Crisper Cover

Yes

Egg Tray

Yes

Freezer Compartment :

Shelf (Material/ No.)

Wire/3

Drawer

HIPS/5

Net Dimensions :

Width/mm

555 mm

Depth/mm

630 mm

Height/mm

1720 mm

Packaging Dimensions :

Width/mm

580 mm

Depth/mm

645 mm

Height/mm

1765 mm

Loading Capacity- 40HQ/ 40Ft/ 20Ft

98/ 72/ 36
