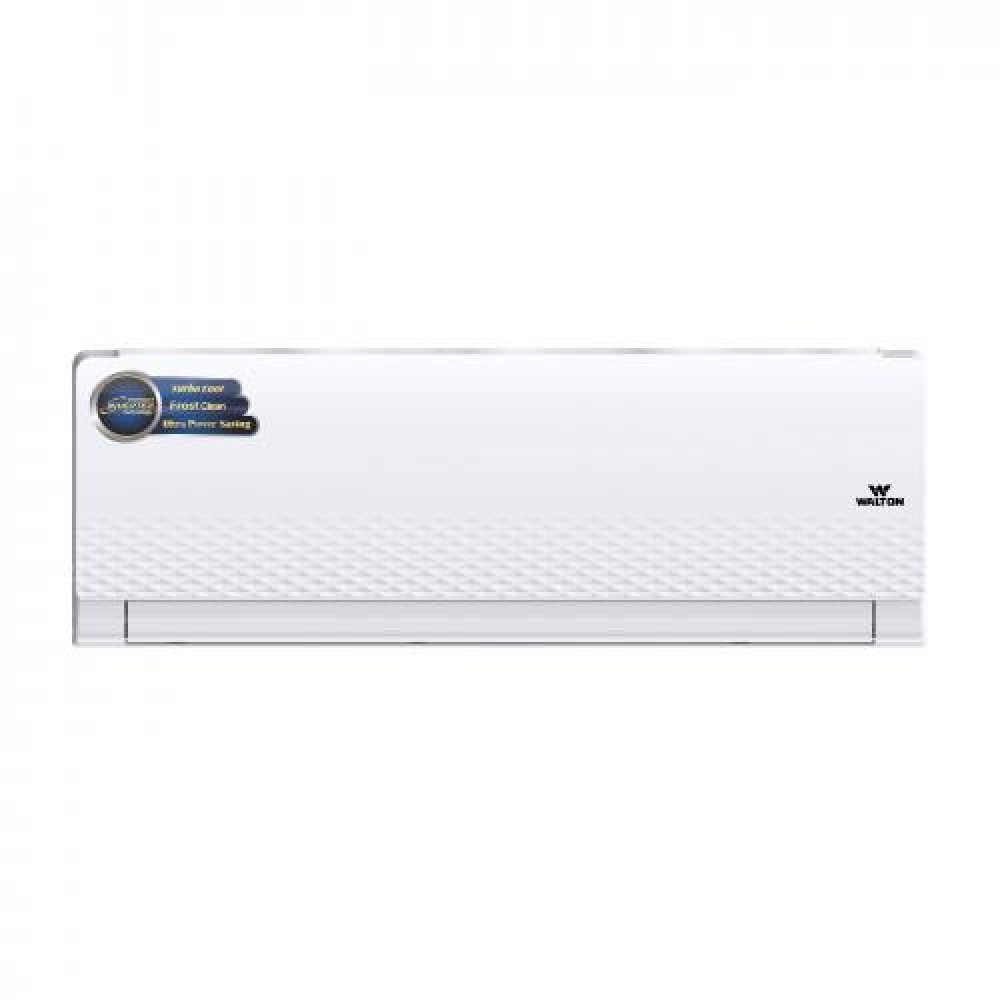

Walton Inverter AC 1 Ton
Walton Inverter AC 1 Ton
In stock

Walton Inverter AC 1 Ton

SKU: -

Category: Air Conditioners

Availability: 10

0.00/5 (0 Review)

Tk 52,990.00

Tag: ac walton inverter

Quantity:
Total: Tk 52,990.00
Share on:

Description

Walton Intelligent Inverter AC (1 Ton – 12000 BTU) – Smart Cooling with Frost Clean Technology

Upgrade your comfort with this 1 Ton Walton Intelligent Inverter Air Conditioner, designed for efficient cooling, silent operation, and healthier air. With advanced Frost Clean technology, energy-saving performance, and smart features, it ensures fast cooling and long-lasting durability for modern homes.

Efficient & Smart Cooling

With a cooling capacity of 12000 BTU, this AC delivers fast and consistent cooling while maintaining low energy consumption. The intelligent inverter technology adjusts power usage automatically, ensuring smooth performance and reduced electricity bills.

Advanced Comfort & Hygiene

Equipped with Frost Clean technology, this AC keeps the evaporator clean, dry, and free from harmful microorganisms. Combined with silent operation and multi-directional airflow, it ensures a fresh, quiet, and comfortable indoor environment.


Product Specifications

Brand : Walton

Model Number : WSI-DIAMOND-12J [FROST CLEAN]

Availability: In stock

Minimum order quantity : 1

Maximum order quantity :

Listed date : 2nd May, 2026

Basic Information

Brand
Walton
model
WSI-DIAMOND-12J [FROST CLEAN]
series name
Diamond
air conditioner type
Intelligent Inverter
function

Cooling

cooling capacity (ton)
1 Ton
compressor
Rotary (Inverter)
refrigerant
R-32
technology
Intelligent Inverter
cooling capacity (btu/hr)
12000 BTU/Hr
cooling capacity (w)
3517 Watts
rated voltage

230V ~ 50Hz

rated power
1116
rated current (a)
4.86
EER
3.15

Detailed Information

refrigerant amount (kg)
0.43
operating range (ambient temperature)
20˚C to 55˚C
evaporator fin type
Louvered Fin
condenser type
Copper Tube Condenser
condenser fin type
Louvered Fin
maximum pipe length
10m
turbo mode
Yes
eco mode
Yes
dry mode
Yes
auto operation
Yes
auto restart
Yes
fan mode
Yes
speed setting
Yes (Auto, High, Medium, Low)
comfort cooling
Yes
timer
Yes
sleep
Yes
display type
LCD
operation/control
Via IR (Infrared Ray)
child lock
Yes
temperature unit change
Yes (​°C to °F)
auto up-down swing
Yes
auto left-right swing
Yes
indoor dimensions (mm) [l×w×h]
Unit: 832 x 296 x 210 Packing: 910 x 365 x 285
outdoor dimensions (mm) [l×w×h]:
Unit: 770 x 300 x 545 Packing: 807 x 347 x 608
net weight (indoor) (kg)
10 ± 0.5
gross weight (indoor) (kg)
11.7 ± 0.5
net weight (outdoor) (kg)
19.3 ± 1
gross weight (outdoor) (kg)
22 ± 1

Special Feature

special features

1. FROST CLEAN:

- Removes dirt from the evaporator

- Keeps the evaporator dry and fungus-free

- Prevents the growth of harmful microorganisms

- Increases longevity of Air Conditioner

2. SILENT OPERATION: Walton Intelligent Inverter Air Conditioner has much quieter and smoother operation than non-inverter type due to BLDC motor usage. The non-inverter makes a lot of noise every time to reach a certain temperature with subsequent on/off feature. Walton Intelligent Inverter Air Conditioner does its function smoothly & silently.

3. FAST COOLING: Compressor & Control board are coupled in such a way that Walton Intelligent Inverter Air Conditioner offers fast cooling by just pressing a single button. (Turbo) of remote control.

4. MULTI DIRECTIONAL AIRFLOW: Walton Intelligent Inverter Air Conditioner has horizontal & vertical swing which enable the air to guide/swing in four direction. You will feel same comfort at every corner of the room.

5. PCB WITH BUILD-IN SURGE PROTECTION: The integrated surge protection in Walton AC shields the sensitive circuits from unexpected power surges (2kV and 4kV)*, allowing you to enjoy worry-free and hassle-free cooling throughout the year.

6. WIDE TEMPERATURE RANGE: The Walton Intelligent Inverter Air Conditioner features a wide indoor set temperature range of 16°C to 31°C, with an outdoor ambient temperature operating range of 20°C to 55°C.

7. ECO FRIENDLY: Walton Intelligent Inverter Air Conditioner uses R32 & R410a gas as refrigerant which is environment friendly. R32 & R410a refrigerant have Zero Ozone Depletion Potential (ODP) & very low Global Warning Potential Ratings (GWP).

8. ENERGY SAVING: Walton Intelligent Inverter AC has a unique feature named Economy. Just pressing a single button (ECO) will allow the unit to save maximum energy.

9. WIDE WORKING VOLTAGE RANGE: Walton Intelligent Inverter Air Conditioner has wide working voltage range starting from 130V to 280V AC at 50Hz.

Warranty Information

product replacement warranty

Guarantee: 1 Year

(Note: if there are manufacturing faults in the compressor)

residential use

Compressor Guarantee: 12 Years

Inverter PCB Warranty: 5 Years

Condenser Warranty: 3 Years

Spare Parts Support: 3 Years

After Sales Service: 2 Year (Free)

commercial use

Compressor Guarantee: 5 Years

Inverter PCB Warranty: 2 Years

Condenser Warranty: 2 Years

Spare Parts Support: 2 Years

After Sales Service: 1 Year (Free)

Terms & Conditions

Warranty Terms & Conditions

1. This warranty does not cover the following cases -

i) If the product is misused, neglected, or rented on a commercial basis. The warranty also will be invalid if repaired, replaced or modified by unauthorized service personnel.

ii) If the product serial number/barcode is removed, altered, or duplicated.

iii) Product defects due to incorrect or negligent storing or use of the products.

iv) Failure to start due to voltage conditions, blown fuses or other damage due to inadequacy or interruption of electrical service.

v) Product defects due to exposure to extreme conditions, e.g. thunder, lightning, water ingress, fire, obstacle to deliver indoor & outdoor airflow.

vi) Damage / failure of product due to rat, cockroach and insects attack etc.

vii) If unit installed in hazards environment by chemical fume, corrosive environment like acid solution, sulfur solution, hydrogen per oxide, sodium sulfate salt, hydrogen Sulfide, Chlorides, bleaching powder, ammonia, chlorine. IPA/Thinner etc.

viii) If unit install in kitchen/oily environment and any heat element/source very near to indoor and outdoor.

ix) Warranty Void Conditions for Inverter PCB in Residential Air Conditioners

a) Improper Installation–Warranty is void if installed by unauthorized personnel, using non-standard components, or not following manufacturer guidelines.

b) Unauthorized Repairs/Modifications–Any repairs, modifications, or use of non-authenticated parts without prior approval will nullify coverage.

c) Physical Damages–Damage caused by external impact, mishandling, exposure to moisture, or burnt components due to short circuits is not covered.

d) Electrical Issues–Damage resulting from lightning, improper power supply, voltage fluctuations, or overloading will void the warranty.

e) Environmental Conditions–Operating the unit out of the recommended temperature/humidity range, exposure to water, or corrosion due to pollutants will invalidate the warranty.

f) Neglect/Misuse–Lack of regular maintenance, improper use, or continued operation after detecting faults will not be covered.

g) Tampering–Altering or removing serial numbers, warranty labels, or other identifying markers will void the warranty.

h) Force Majeure–Natural disasters, accidents, or other unforeseen external events are not covered.

i) Improper Accessories–The use of uncertified external devices, wiring, or connectors will void the warranty.

j) Documentation Issues–Failure to provide proof of purchase, digital warranty registration, or service records may result in denial of claims.

Note: During the warranty period, products or parts will not be replaced if they are repairable. However, if repair is not possible, replacement will be provided as per the warranty policy. Clear communication of these conditions ensures transparency and helps set realistic expectations for customers.

2. This warranty covers only manufacturing defects, subject to verification by company personnel.

3. After sales service will be applicable only at company authorized service points.

4. Authority reserves the right to change, extend, correct, stop or cancel the warranty period without any prior notice.

5. Effective from August 1, 2025, all inverter air conditioners will come with a 5-year inverter PCB warranty and a 2-year after-sales service warranty. For units purchased before August 1, 2025, a 3-year inverter PCB warranty and a 1-year after-sales service warranty will apply. However, from April 1, 2025 to July 31, 2025 a 5-year inverter PCB warranty will apply only to INVERNA, ACC, and MARLINE series.

6. A maximum of two free cleaning services will be provided during the 2-year after-sales service warranty period, upon request.
