Model Information:

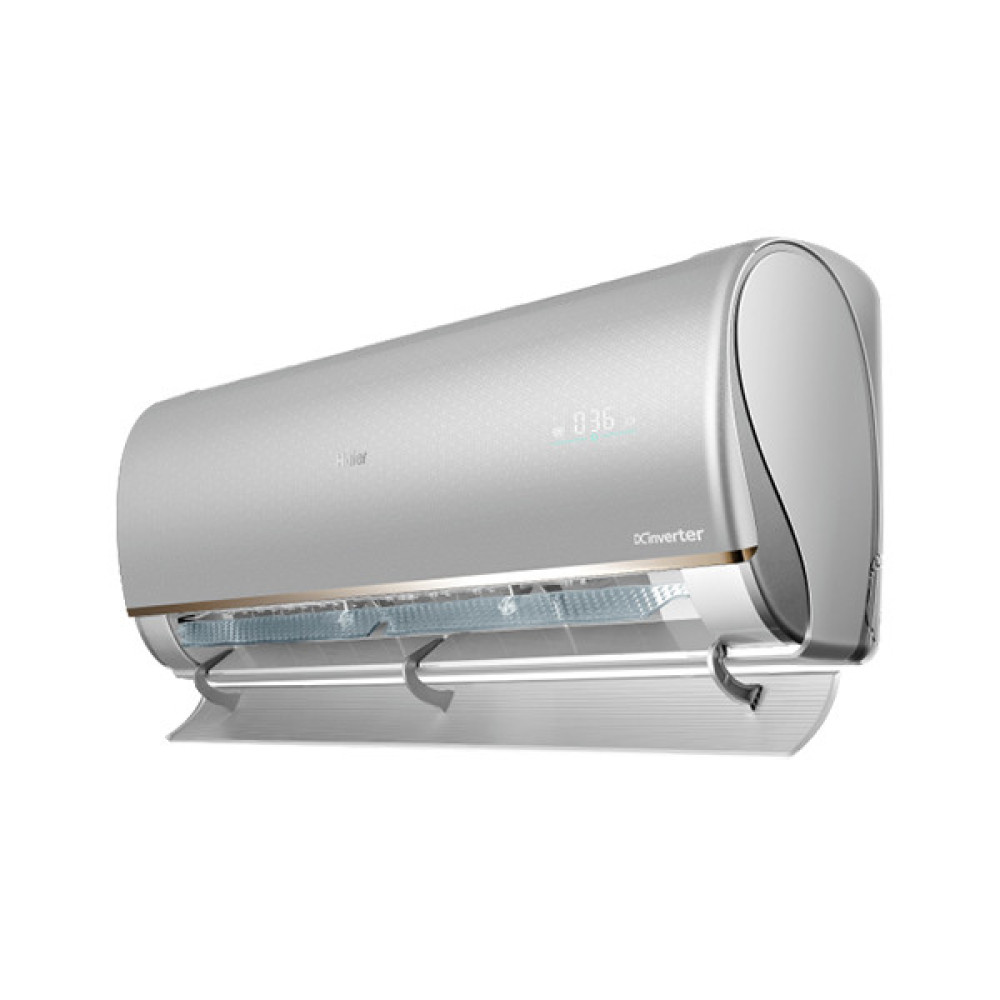

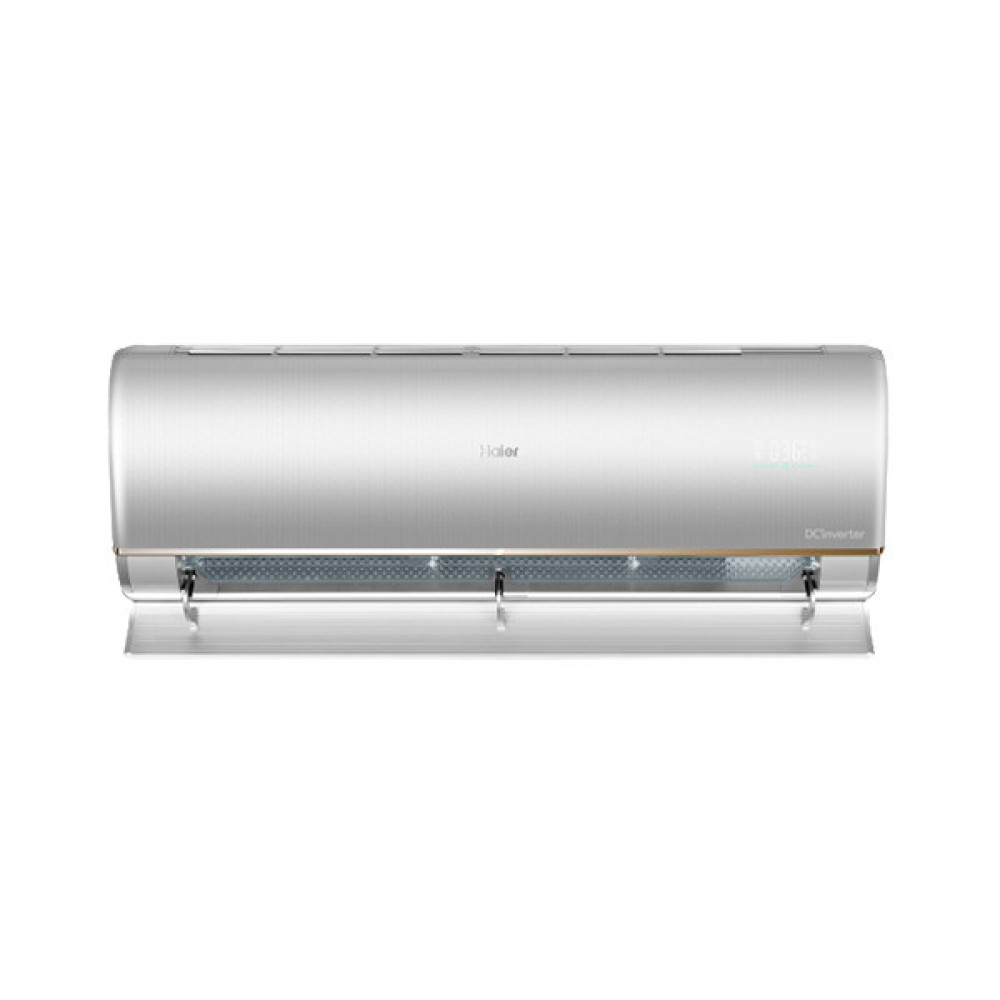

• Indoor Unit: HSU-19PuriCool (INV) (Pro)
• Outdoor Unit: HSU-19K PuriCool (INV) (Pro) : ODU

Category:

• Type: Inverter
• Series: Inverter

Capacity & Performance:

• Ton Range: 1.6 Ton
• Capacity: 19000 BTU
• Rated Cooling Capacity: 5570 W
• Rated Heating Capacity: N/A
• Rated Power Input (Cooling): 1800 W
• Max Power Input (Cooling): 1860 W
• Energy Efficiency Ratio (EER): 2.93
• Seasonal Energy Efficiency Ratio (SEER): 3.80
• Coefficient of Performance (COP): N/A
• Rated Running Current (Cooling): 8.0 A
• Max Running Current (Cooling): 9.0 A
• Power Supply: 1 / 230V / 50Hz
• Air Circulation: 1100 m³/h
• Moisture Removal: N/A

Refrigerant & Components:

• Refrigerant Type: R32
• Refrigerant Charge: 0.980 Kg
• Liquid Side Diameter: 6 mm
• Gas Side Diameter: 12 mm
• Compressor Type: Rotary
• Evaporator / Condenser: 100% 7mm Grooved Copper
• Heat Exchanger: Golden Fin

Indoor Unit:

• Net Dimension (mm): 1050 × 235 × 350
• Package Dimension (mm): 1160 × 347 × 455
• Net Weight: 15.5 Kg
• Gross Weight: 18 Kg
• Sound Level (Hi/Mid/Lo): 49 / 45 / 40 dB(A)

Outdoor Unit:

• Net Dimension (mm): 800 × 280 × 553
• Package Dimension (mm): 908 × 405 × 627
• Net Weight: 32.5 Kg
• Gross Weight: 35.5 Kg
• Sound Level: 55 dB(A)

Air Flow Direction:

• Up & Down: Auto
• Left & Right: Auto

User Functions:

• WiFi Control: Yes
• Energy Saving: Yes (Up to 65%)
• Dry Mode: Yes
• Self Clean: Yes
• Turbo Function: Yes
• Auto Restart: Yes
• Sleep Mode: Yes
• Low Noise Operation: Yes
• Timer: Yes
• Quick & Easy Installation: Yes
• Child Lock: Yes

Warranty:

• Compressor: 12 Years
• Spare Parts & Components: 5 Years
• Service: 5 Years
